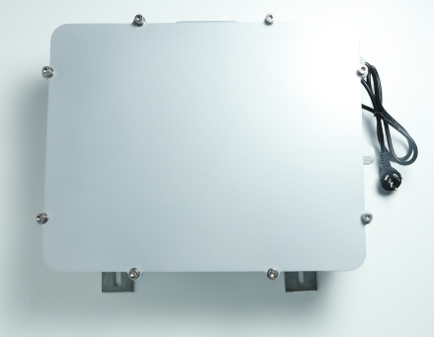

High Power Repeater(5W)

Case description

Supporting signal amplification for CDMA800, FDD-LTE1800, and FDD-LTE2100 (adjustable according to customer needs), it quickly solves closed blind spots or weak coverage areas with low traffic volume. It is a system level solution for similar scenarios such as underground parking lots and elevators, thereby improving the deep coverage capability of CDMA800 and wireless communication signals for FDD-LTE1800 and FDD-LTE2100.
Specifications

High Power Repeater(5W) Specifications

Case properties

Frequency range [can be remotely upgraded to modify the amplified frequency band and corresponding bandwidth]	1710MHz-1735MHz/1805-1830
Output Power	up： 23dBm（+2 -2dB）， Down：37dBm（+2-2dB）
Gain	90±3dB
AGC range	≥40dB
ACPR（ACLR）	1dB
EVM	≤5%
VSWR	≤1.5
NF	≤5dB
out-of-band rejection	3.0 £ f_offset_CW < 5 MHz ≥20dB
out-of-band rejection	5 MHz £ f_offset_CW ≥25dB
