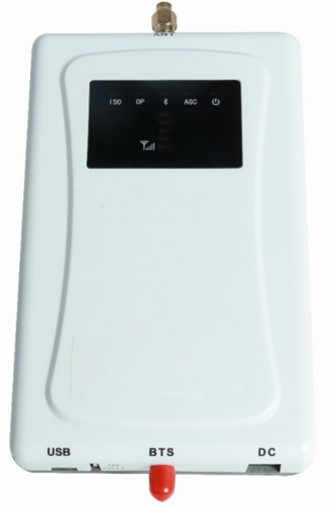

Single band adjustable bandwidth

Case description

Automatic isolation detection and processing; Automatic output power control; Automatic gain control; Digital frequency band selection, adjustable center frequency and bandwidth; It can be set to cover both internal and external antennas.
Specifications

Single band adjustable bandwidth Specifications

Case properties

	Uplink	Downlink
Frequency(MHz) (Can be customized)	1920-1980	2110-2170
Working bandwidth	0.2-45MHz center point and bandwidth adjustable, step 0.2MHz
Max Gain value	≧75dB	≧75dB
Adjustable gain range	≧30 dB	≧30 dB
Maximum output power	20±2 dBm	20±2 dBm
