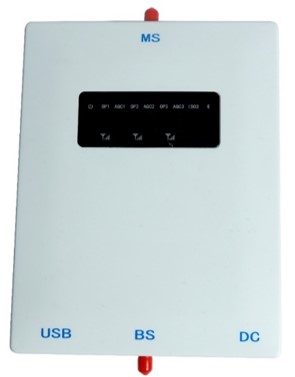

0.1W adjustable bandwidth repeater (three frequency)
-
Case description
Supporting signal amplification for CDMA800, FDD-LTE1800, and FDD-LTE2100 (adjustable according to customer needs), it quickly solves closed blind spots or weak coverage areas with low traffic volume. It is a system level solution for similar scenarios such as underground parking lots and elevators, thereby improving the deep coverage capability of CDMA800 and wireless communication signals for FDD-LTE1800 and FDD-LTE2100. -
Specifications
0.1W adjustable bandwidth repeater (three frequency) SpecificationsCase properties
CDMA 800MHz | Uplink | Downlink |
Frequency range | 825 -835MHz | 870 MHz -880MHz |
Working bandwidth | 10MHz | 10 MHz |
Maximum output power | 17±2dBm | 20±2dBm |
Max gain | 70±3dB | 75±3dB |
Automatic level control | ≧40dB | ≧40dB |
FDD-LTE 1800MHz | Uplink | Downlink |
Frequency range | 1765 -1785MHz | 1860-1880MHz |
Working bandwidth | 20MHz | 20 MHz |
Maximum output power | 17±2dBm | 20±2dBm |
Max gain | 70±3dB | 75±3dB |
Automatic level control | ≧30dB | ≧30dB |
FDD-LTE2100MHz | Uplink | Downlink |
Frequency range | 1920-1965MHz | 2110-2155MHz |
Working bandwidth | 45MHz | 45MHz |
Maximum output power | 17±2dBm | 20±2dBm |
Max gain | 70±3dB | 75±3dB |
Automatic level control | ≧30dB | ≧30dB |
